1.5mm To 60mm Thickness Clear Acrylic PMMA Sheet Eco - Friendly Sheets

500.0 kilograms
MOQ
1.5mm To 60mm Thickness Clear Acrylic PMMA Sheet Eco - Friendly Sheets
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Material: Acrylic
Thickness: 0.15-1.5MM-10MM
Size: 2440mm
Processing Service: Cutting
Product name: 1.5mm to 60mm Thickness Clear Acrylic Sheet PMMA Sheets
Other Product Name: PMMA Sheet
Origin: China
Color: Transparent
Application: For Architectural,Signage,Lighting
Feature: Eco-Friendly
Sample: Available
Packing: Pallets
Certificate: ISO
MOQ: 500KG
Основная информация
Сертификация: ISO
Оплата и доставка Условия
Supply Ability: 100 Ton/Tons per Day 1.5mm to 60mm Thickness Clear Acrylic Sheet PMMA Sheets
Характер продукции
Product Description

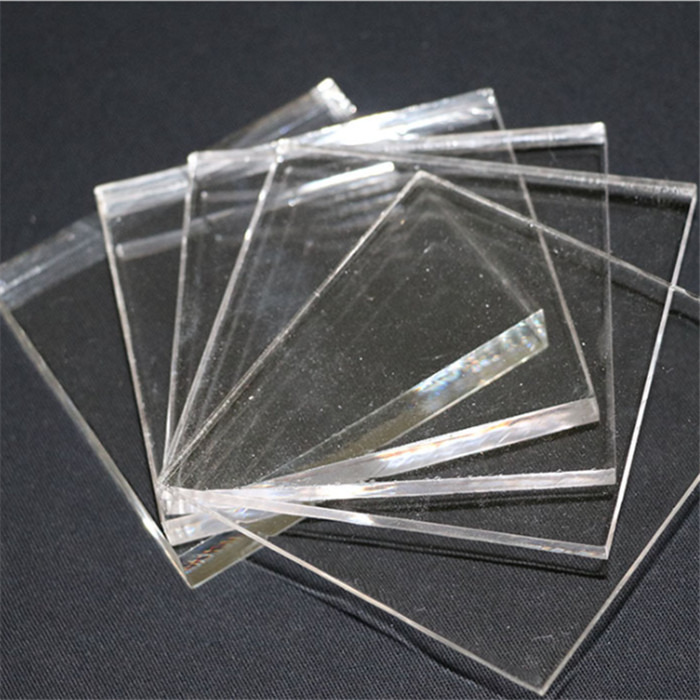

1.5mm to 60mm Thickness Clear Acrylic Sheet PMMA Sheets

Product Details

Polymethyl methacrylate (PMMA) is a transparent thermoplastic. Its superior light transmission properties, rigidity and scratch resistance renders it to be used as a better alternative to glass in most areas of applications. Since it is lighter than glass, structural requirements are lesser compared to glass. It is sometimes called acrylic glass. Acrylic is a synthetic polymer of methyl methacrylate.

Acrylic sheet offers unique physical properties and performance characteristics. Acrylic is made from PMMA, or Poly Methyl Methacrylate, which is where the shortened “Acrylic” is derived from. Acrylic comes in many forms, however the sheet from is by far the most popular and widely applied product of PMMA.

Acrylic Sheet properties

-Excellent weatherability

-Excellent processability

-High impact resistance

Industrial uses

-Demonstration windows&housings

-Infrared windows

-Lighting fixture diffusers

-Transparent tanks

Technical Data Sheet
Item Condition Standard Grades Test Method
High Heat
VH 001
Physical properties Density (g/cm) 1.19 ISO 1183
Total Luminous Transmittance(%) 3mm

93

 ISO 13468
Haze(%) 3mm 0.3 ASTM D1003 ISO 14782
Refractive index nd 1.49 ASDM D542 ISO 489
Water absorption(% J/(g ) 24hr 0.3 ISO 62
Thermal properties Specific heat(.K) 1 ) 1.5
Coefficient of linear thermal expansion(℃) 6×10-5
Thermal conductivity(W/(m.K)) 0.2
Temperature of deflection under lo(℃) 1.8MPa 100 ISO 75
Vicat Softening temperature(℃) B50 107 ISO 306
Melt flow rate( g/10min) 230℃,37.3N 2 ISO 1133
Spiral flow(mm) 230℃ 130 MRC MRC Method
(2mm thickness)(mm) 250℃ 220
Mold shrinkage(%) 0.2-0.6 MRC MRC Method
Mechanical properties Tensile strength(MPa) 1A/5 77 ASTM D638
Elongation(%) 1A/5 6 ASTM D638
Modulus of elasticity(GPa) 1A/1 3.3
Flexural strength(MPa) 140 ASTM D790
Flexural modulus(GPa) 3.3 ASTM D790
Charpy impact strength(kJ/m2) 1eU unnotched 20
1eA Vnotched 1.4
Rockwell hardness(kJ/m2) M scale 101 ASTM D785
Electrical properties Surface resistivity(Ω) >1016
Electrical volume resistivity(Ωm) >1013
Dielectric strength(MV/m) 4kV/sec 20 ASTM D149
Dielectric constant 60Hz 3.7
Power factor 60Hz 0.05
Arc resistance No track
Flamability 1.5mm,3.0mm HB File No.E54695

Application For PMMA Sheet

This product is probably used in the most broad range of applications compared to other plastics.These include:

-Architectural

-Signage

-Lighting

-Point of sale

-Display

-Exhibition

-Furniture

-Aquariums

Packaging & Shipping

Package

Company Information
  • We are a specialized manufacturer of PETG, APET, PC, PMMA sheet
  • Our vision today is to maintain our position as one of the leading manufacturers of plastic sheet field.

Why Choose Us?

FAQ

FAQ

Q1. Are you factory or trade company?

A: We are professional manufacturer of 15 years experience, if you have interests welcome to visit our factory.

Q2. Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free, but charge by freight collect.

Q3. How about the lead time?

A: Normal sample supply it at once. Special samples needs 3 days. mass production generally 5-10 working days after receiving your initial payment.

Q4. Do you have any MOQ limit?

A: Normal Only 500kgs, Special colors about 2000kg.

Q5. What is your terms of payment?

A: 30% T/T in advance , balance before shippment. We accept L/C at Sight .

Q6. How about the quality problem and claim?

A: Alibaba Trade Assurance which is a new service provided by Alibaba, safeguarding buyer's payment to suppliers to ensure suppliers fulfill their obligations regarding order delivery and product quality.
